9 PIN MINI-SIZE RS232 TO RS485 COMMUNICATION DATA CONVERTER ADAPTER

Description

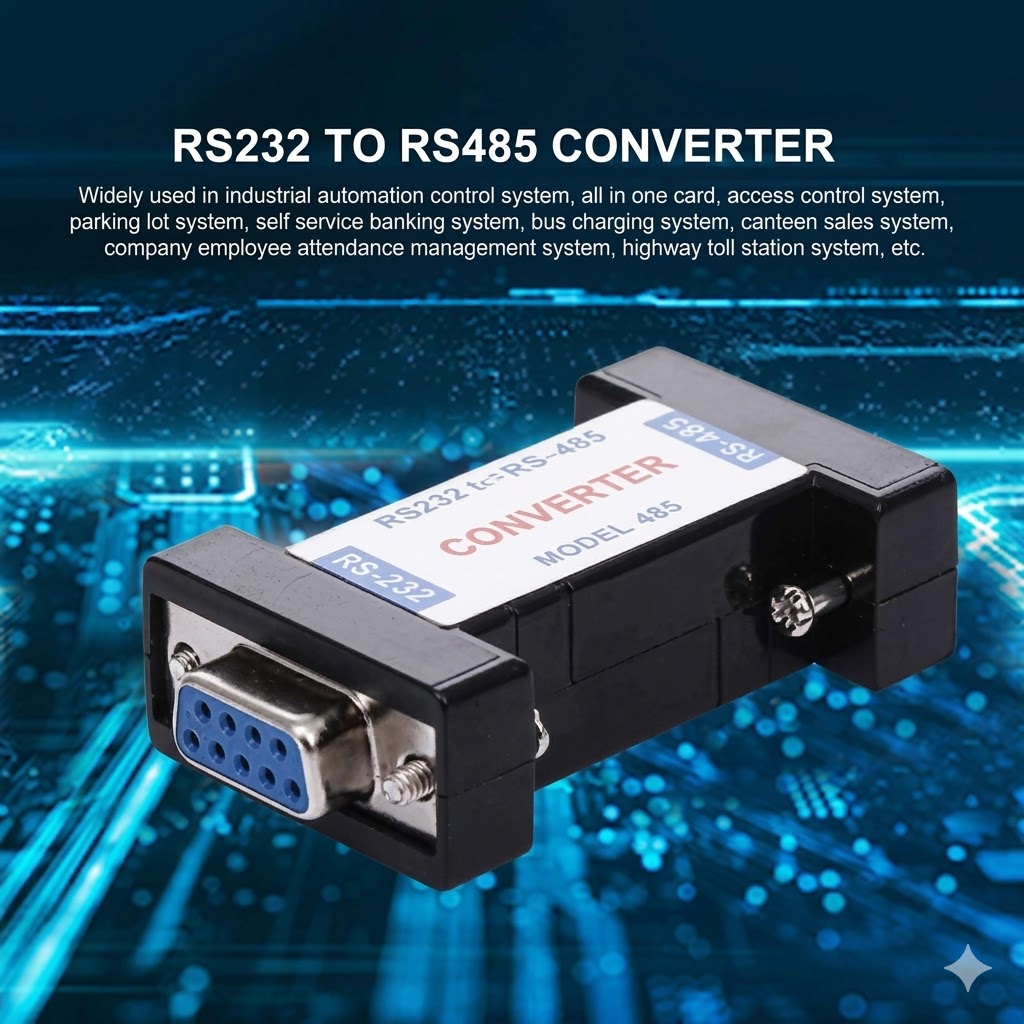

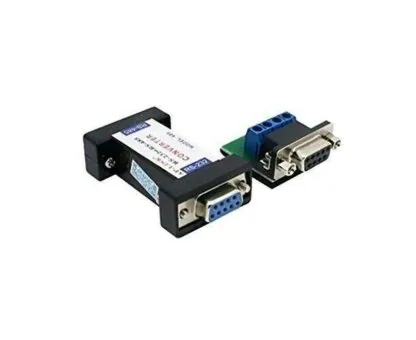

9 Pin Mini-Size RS232 to RS485 Communication Data Converter Adapter

The 9 Pin Mini-Size RS232 to RS485 Communication Data Converter Adapter is a compact and reliable device designed to convert RS232 serial signals into RS485 signals, enabling efficient communication between devices that use different serial communication standards. This adapter is widely used in industrial automation, security systems, POS systems, access control, data acquisition equipment, PLC controllers, and communication networks where long-distance and stable serial communication is required.

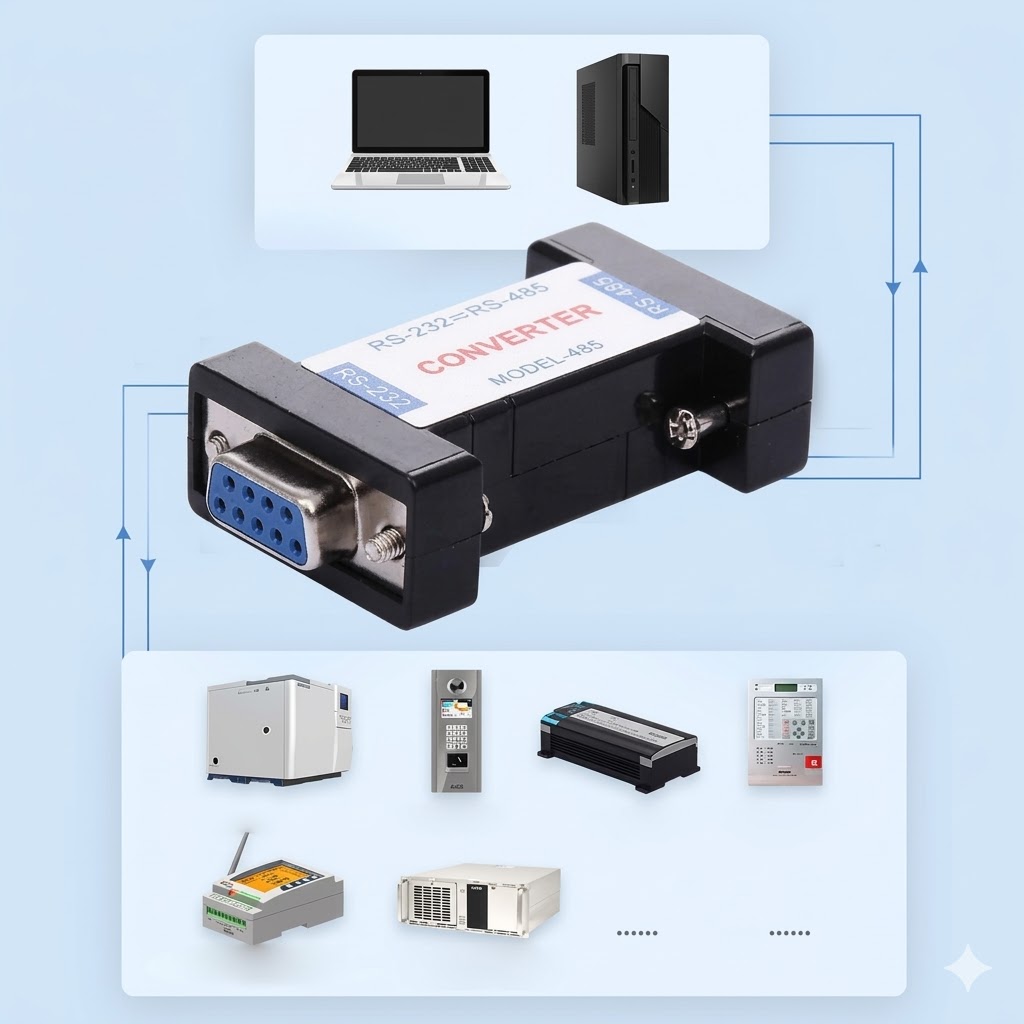

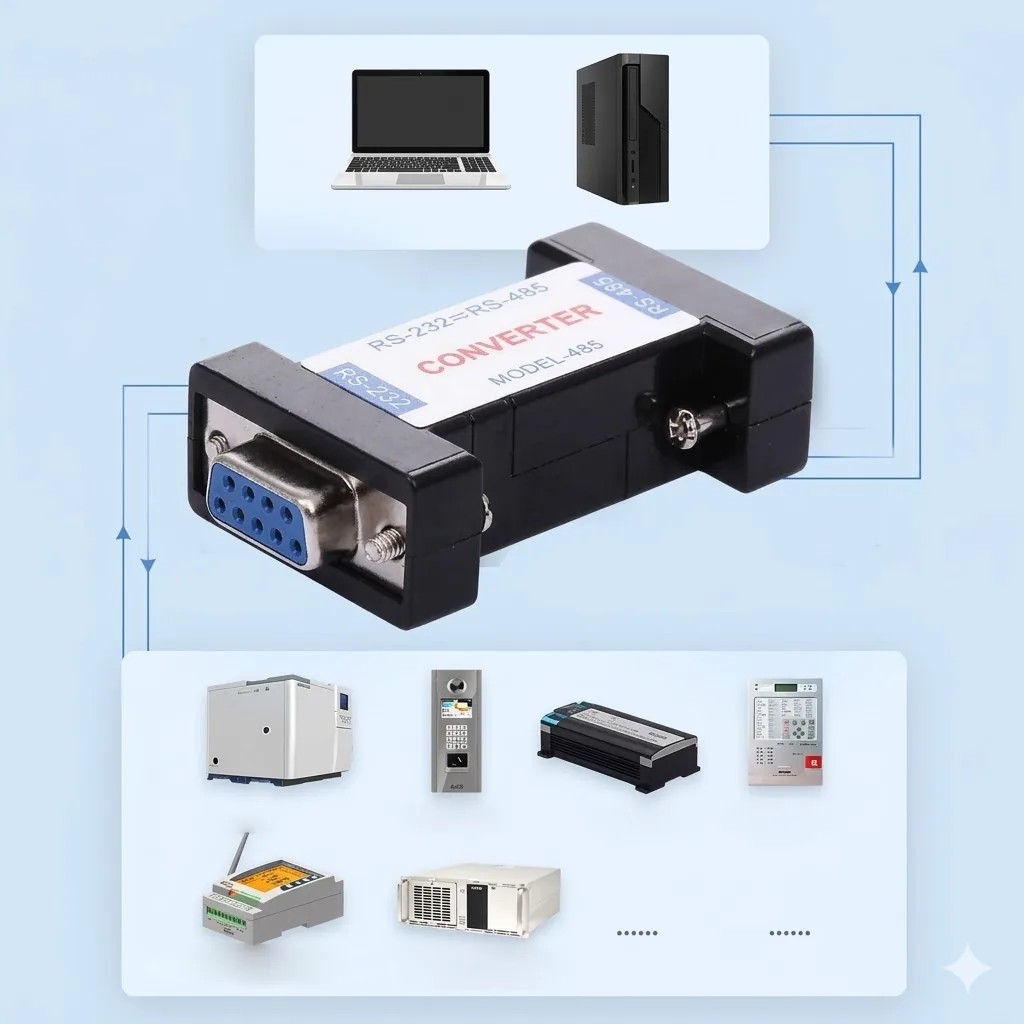

Modern industrial and commercial environments often rely on multiple devices that use different communication interfaces. Many legacy devices operate using RS232 serial communication, while modern industrial equipment commonly uses RS485 because it supports longer communication distances and multiple devices on a single network. The RS232 to RS485 converter adapter solves this compatibility issue by acting as a bridge between these two communication protocols, allowing seamless data transfer between connected devices.

Compact Mini-Size Design

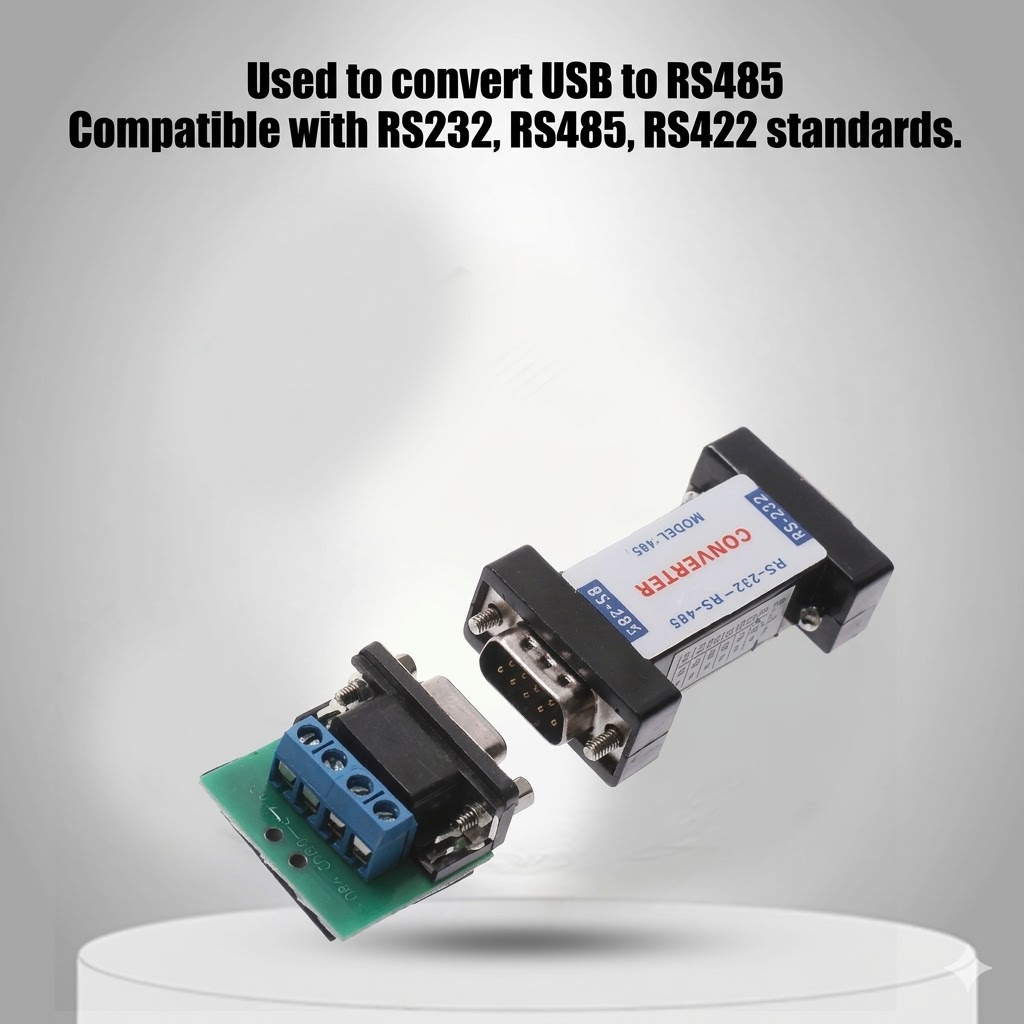

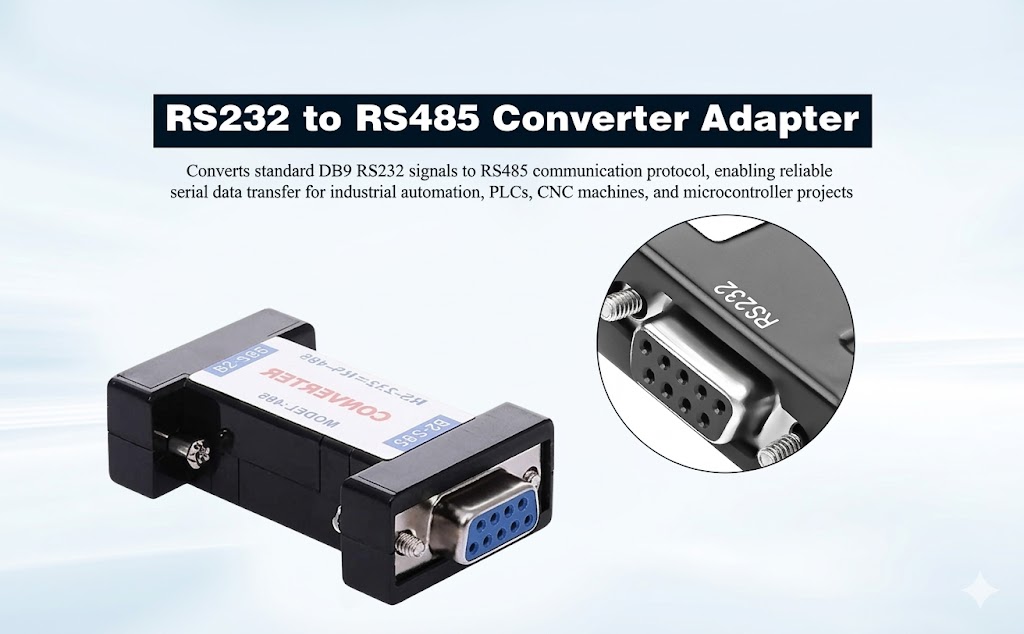

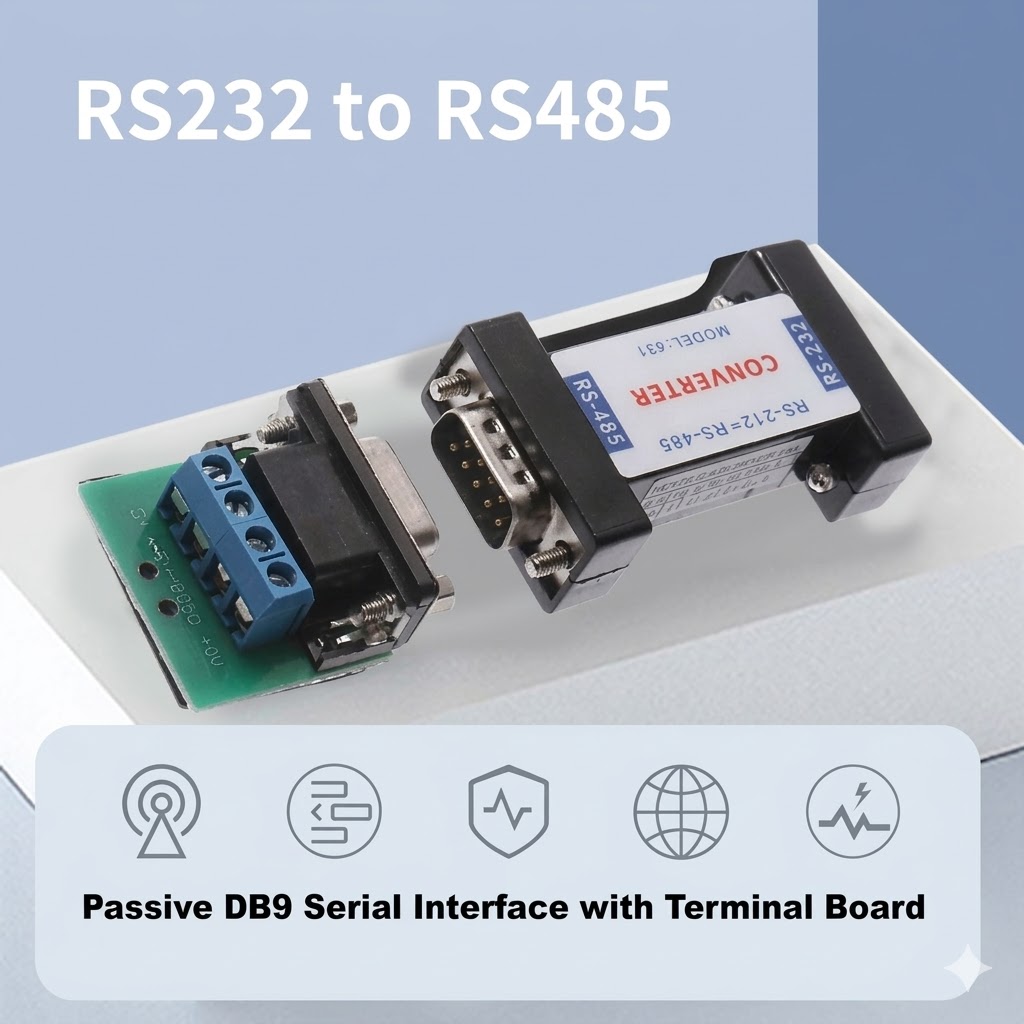

One of the key advantages of this converter is its mini-size and lightweight design, which makes it extremely convenient to install even in environments where space is limited. The adapter is designed with a 9-pin DB9 RS232 interface, making it compatible with most standard serial ports found on computers, industrial equipment, control systems, and communication devices. Its compact construction allows it to be directly connected to devices without requiring additional mounting accessories.

The durable housing also protects the internal circuitry from external interference and environmental factors, ensuring stable performance even in demanding industrial environments.

Efficient RS232 to RS485 Conversion

The primary function of this adapter is to convert RS232 serial signals into RS485 differential signals. RS232 is typically used for short-distance communication between two devices, usually within a few meters. In contrast, RS485 is designed for long-distance communication and multi-device networking. By converting RS232 signals into RS485 signals, this adapter allows devices to communicate over much longer distances without signal degradation.

The adapter supports asynchronous, half-duplex differential transmission, which is the standard communication method used by most RS485 systems. This ensures reliable and stable communication between connected devices while minimizing signal interference and transmission errors.

High Data Transfer Performance

The converter supports a data transfer rate ranging from 300bps to 115200bps, making it suitable for a wide range of industrial and commercial applications. This flexible data rate allows the adapter to work with various communication systems, including slow control systems as well as faster data communication networks.

The high-performance signal conversion ensures that data transmission remains accurate and stable even when operating at higher baud rates.

Long Distance Communication Capability

One of the most significant advantages of RS485 communication is its ability to transmit data over long distances. This converter supports an operating distance of up to 1200 meters for RS485 communication, allowing devices to communicate over extended networks without requiring additional signal boosters.

In comparison, the RS232 side supports a communication distance of up to 5 meters, which is typical for RS232 devices. By converting the RS232 signal to RS485, the adapter significantly extends the communication range, making it ideal for large industrial setups, factory automation systems, building management systems, and other long-distance communication environments.

No External Power Required

A major benefit of this converter adapter is that it does not require an external power supply. The device uses the TD (Transmit Data) signal from the RS232 port as its power source, which simplifies installation and reduces the need for additional cables or power adapters.

Because of this self-powered design, the converter is easy to deploy and can be used in locations where power outlets are not readily available. This feature also reduces system complexity and improves reliability.

Reliable Transmission Media

The converter supports twisted-pair or shielded twisted-pair (STP) cables as transmission media for RS485 communication. Twisted-pair wiring helps reduce electromagnetic interference and signal noise, ensuring stable and reliable data transmission even in electrically noisy environments such as factories, control rooms, and industrial facilities.

Using shielded twisted-pair cables can further improve signal integrity and protect the communication network from external interference.

Wide Environmental Operating Range

This RS232 to RS485 converter is designed to operate in a wide range of environmental conditions, making it suitable for both indoor and industrial use.

• Operating Temperature: -10°C to 85°C

• Humidity Range: 5% to 95% relative humidity

These specifications ensure that the converter continues to function reliably even in harsh environments where temperature fluctuations and humidity levels are common.

Standards Compatibility

The adapter is fully compatible with widely recognized communication standards, ensuring broad device compatibility. It supports:

• EIA/TIA RS-232C standard

• RS-485 communication standard

This compliance ensures that the converter can work with a wide variety of serial communication devices from different manufacturers without compatibility issues.

Typical Applications

The 9 Pin RS232 to RS485 Communication Data Converter Adapter is commonly used in many industries and applications, including:

• Industrial automation systems

• PLC and SCADA communication networks

• Access control and security systems

• POS (Point of Sale) equipment

• Data acquisition systems

• Building automation systems

• Surveillance and monitoring systems

• Serial device networking

• Remote device communication

Because RS485 allows multiple devices to be connected on the same communication bus, this converter is especially useful for creating multi-device serial communication networks.

Key Features

• Mini-size compact design for easy installation

• Converts RS232 serial signals to RS485 communication

• Supports data transfer rates from 300bps to 115200bps

• RS485 communication distance up to 1200 meters

• RS232 communication distance up to 5 meters

• No external power required – powered by TD signal

• Supports twisted-pair or shielded twisted-pair cable

• Compatible with EIA/TIA RS-232C and RS-485 standards

• Operates in asynchronous half-duplex differential mode

• Wide operating temperature range (-10°C to 85°C)

• High reliability and stable signal transmission

Conclusion

The 9 Pin Mini-Size RS232 to RS485 Communication Data Converter Adapter is a practical and cost-effective solution for integrating RS232 devices into RS485 communication networks. With its compact design, long communication distance, stable data transmission, and no external power requirement, this adapter provides a simple and efficient way to expand serial communication capabilities.

Whether used in industrial automation, data communication systems, or control networks, this converter ensures reliable connectivity between devices operating on different communication standards, making it an essential component for modern serial communication infrastructure.
