Description

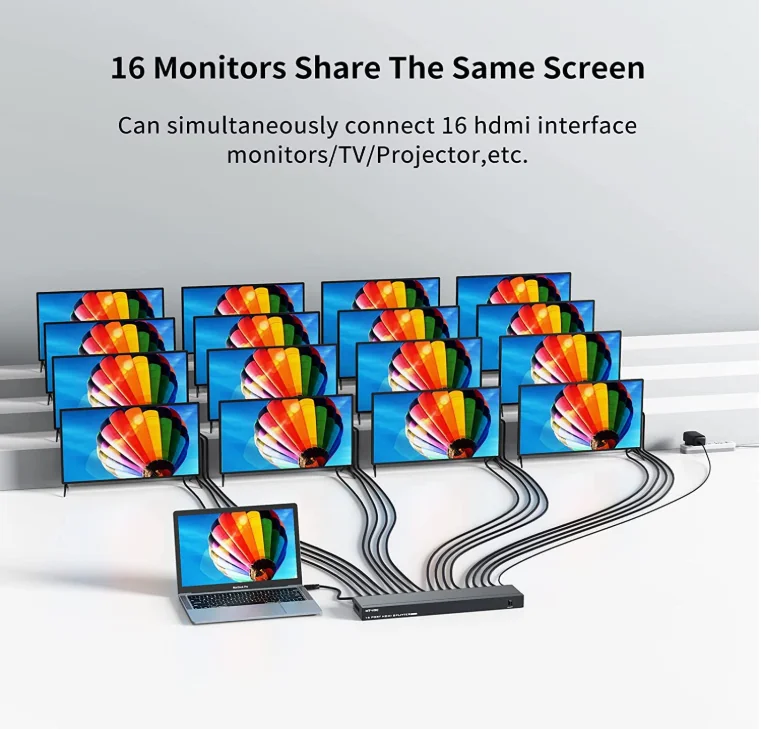

The 16 Port HDMI Splitter 4K is a high-performance device designed to split a single HDMI input into sixteen identical outputs simultaneously, making it perfect for classrooms, offices, broadcasting, monitoring, training facilities, and multi-screen home setups. With this splitter, you can enjoy the same high-definition video and audio on sixteen displays without any quality loss, delivering crystal-clear visuals and immersive sound across all connected screens.
Table of Contents
-
Product Overview
-
Key Features of 16 Port HDMI Splitter 4K
-
Technical Specifications
-
Installation and Usage
-
Applications and Benefits
-
Package Contents
-
Image Alt Text Suggestions
-
Internal & External Links

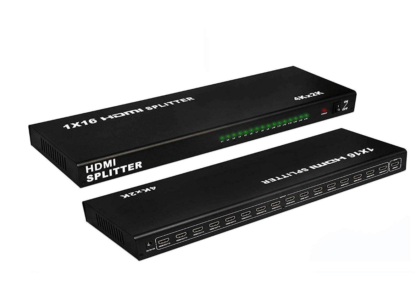

Product Overview
The 16 Port HDMI Splitter 4K supports HDMI 1.4b and is compatible with Full HD 1080p, 1080i, 720p, 576p, 576i, 480p, and 480i resolutions. It also supports 4Kx2K at 30Hz, 3D video formats, and high-definition digital audio formats, including Dolby True HD, DTS, DTS-HD, DSD, HDCP, and EDID.
The device is designed for simultaneous video and audio transmission across sixteen screens, ensuring no lag, no distortion, and no signal loss. It works with HDTV, Blu-ray DVD players, Xbox, PS3, PS4, Fire TV Stick, Apple TV, set-top boxes, and A/V receivers.
The 16 Port HDMI Splitter 4K features high compatibility with TMDS clock up to 320MHz, 3.2Gbps data rate, and deep color support (8/10/12bit). It is engineered for long cable runs, with input distances of up to 15 meters for 1080p, 12 meters for 4K, and output distances of up to 25 meters for 1080p, 15 meters for 4K, using AWG26 HDMI cables.
Key Features of 16 Port HDMI Splitter 4K
-
1 HDMI input to 16 HDMI outputs – Distribute a single source to sixteen screens simultaneously.
-
Supports Full HD 1080p, 1080i, 720p, and 4Kx2K at 30Hz.
-
3D video support for immersive multi-screen experience.
-
Supports high-definition audio formats: Dolby True HD, DTS, DTS-HD, DSD, HDCP, EDID.
-
Compatible with HDTVs, Blu-ray players, Xbox, PS3, PS4, Fire TV Stick, Apple TV.
-
Supports deep color 8/10/12bit for vibrant visuals.
-
TMDS clock up to 320MHz, 3.2Gbps data rate.
-
Input and output distances up to 25 meters with standard HDMI cables.
-
Durable, plug-and-play design for professional or home use.
Technical Specifications
| Specification | Details |
|---|---|
| HDMI Input | 1x HDMI |
| HDMI Output | 16x HDMI |
| Max Resolution | 3840×2160 (4Kx2K) @ 30Hz |
| Full HD Support | 1080p, 1080i, 720p |
| 3D Support | Yes |
| HDMI Version | 1.4b |
| Audio Support | Dolby True HD, DTS, DTS-HD, DSD, HDCP, EDID |
| Data Rate | 3.2Gbps TMDS Clock up to 320MHz |
| Color Depth | Deep Color 8/10/12bit |
| Input Cable Distance | 12m (4K), 15m (1080p) |
| Output Cable Distance | 15m (4K), 25m (1080p) |
| Material | Sturdy Metal |
| Color | Black |
| Dimensions | Compact, Professional Design |

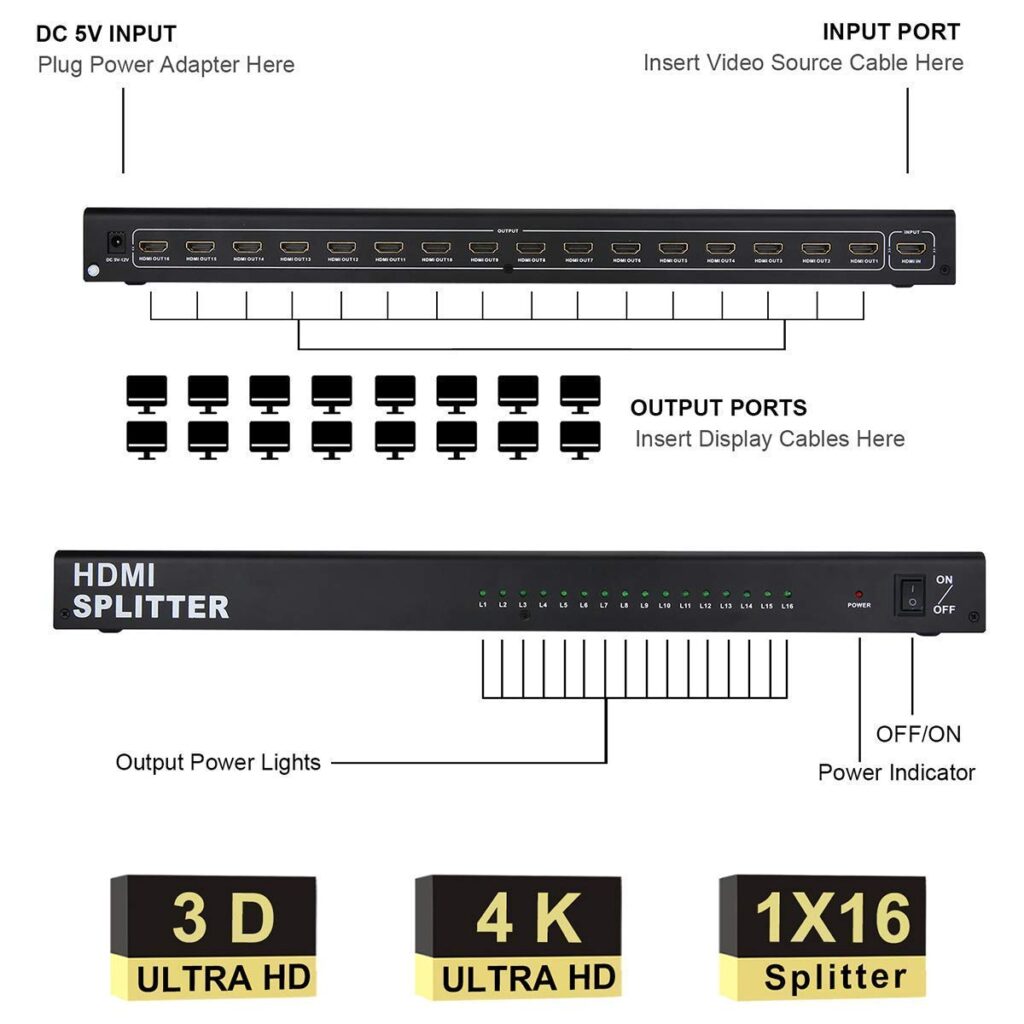

Installation and Usage
-

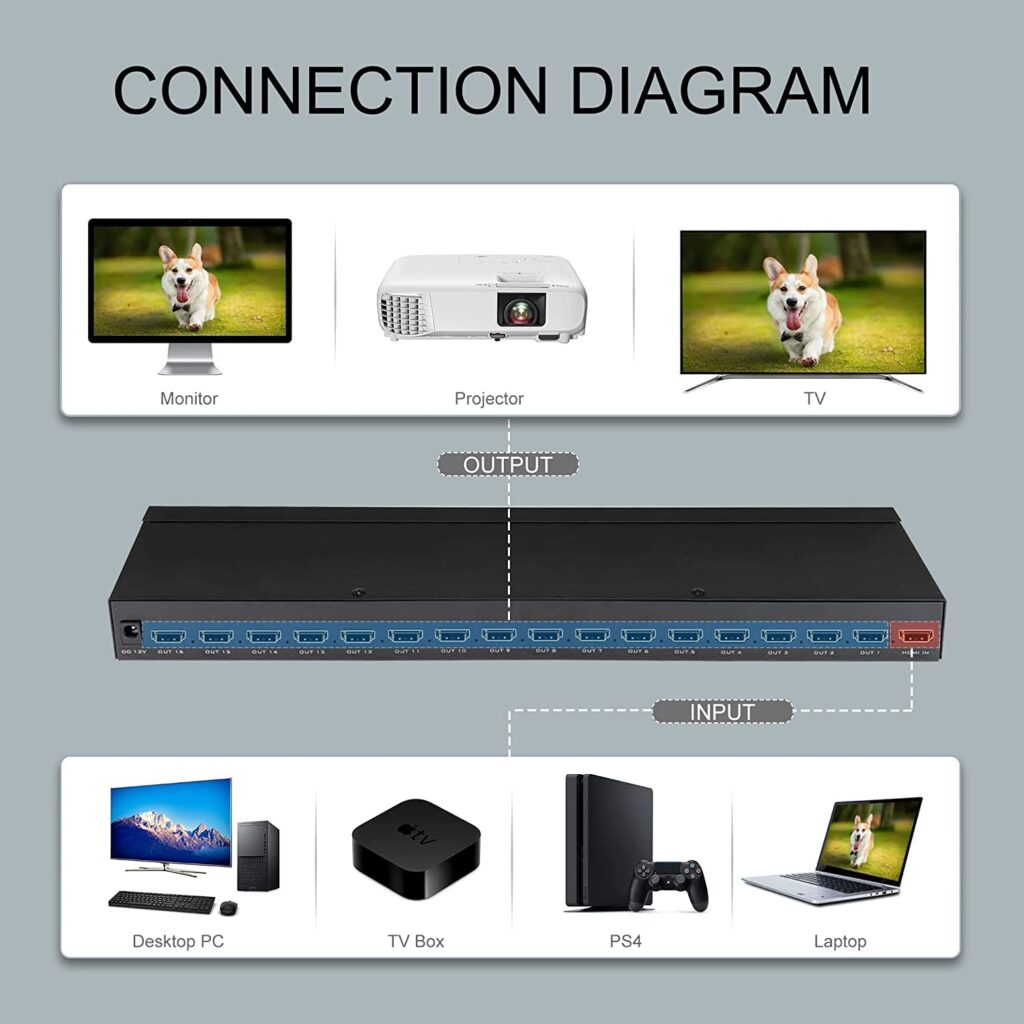

Connect your HDMI source device (DVD player, Blu-ray, PS4, Xbox, or set-top box) to the HDMI input.
-
Connect up to 16 HDMI displays to the output ports.
-
Plug in the power supply and turn on the device.
-
Enjoy high-definition video and audio on all sixteen screens simultaneously.
Pro Tip: Use AWG26 HDMI cables for 4K setups over longer distances to avoid signal degradation.
Applications and Benefits
The 16 Port HDMI Splitter 4K is ideal for:
-
Classrooms & Training Centers: Share educational content on multiple screens.
-
Offices & Conference Rooms: Display presentations across large meeting areas.
-
Broadcasting & Monitoring: Show news, stock prices, airline, or train schedules on multiple screens.
-
Retail Stores & Advertising: Display promotions or announcements simultaneously.
-
Home Theater & Gaming: Multi-screen entertainment with immersive visuals and audio.
It ensures uniform high-quality display across all connected screens, providing stable performance and professional-grade output.
Package Contents
-
1x HDMI Splitter 1 in 16 Out
-
1x Power Supply Adapter
-
1x Instruction Manual
Internal Links
External DoFollow Links
-
HDMI Standards: https://www.hdmi.org/spec/
-
4K Resolution Guide: https://www.rtings.com/tv/learn/4k-tv-resolution
-
