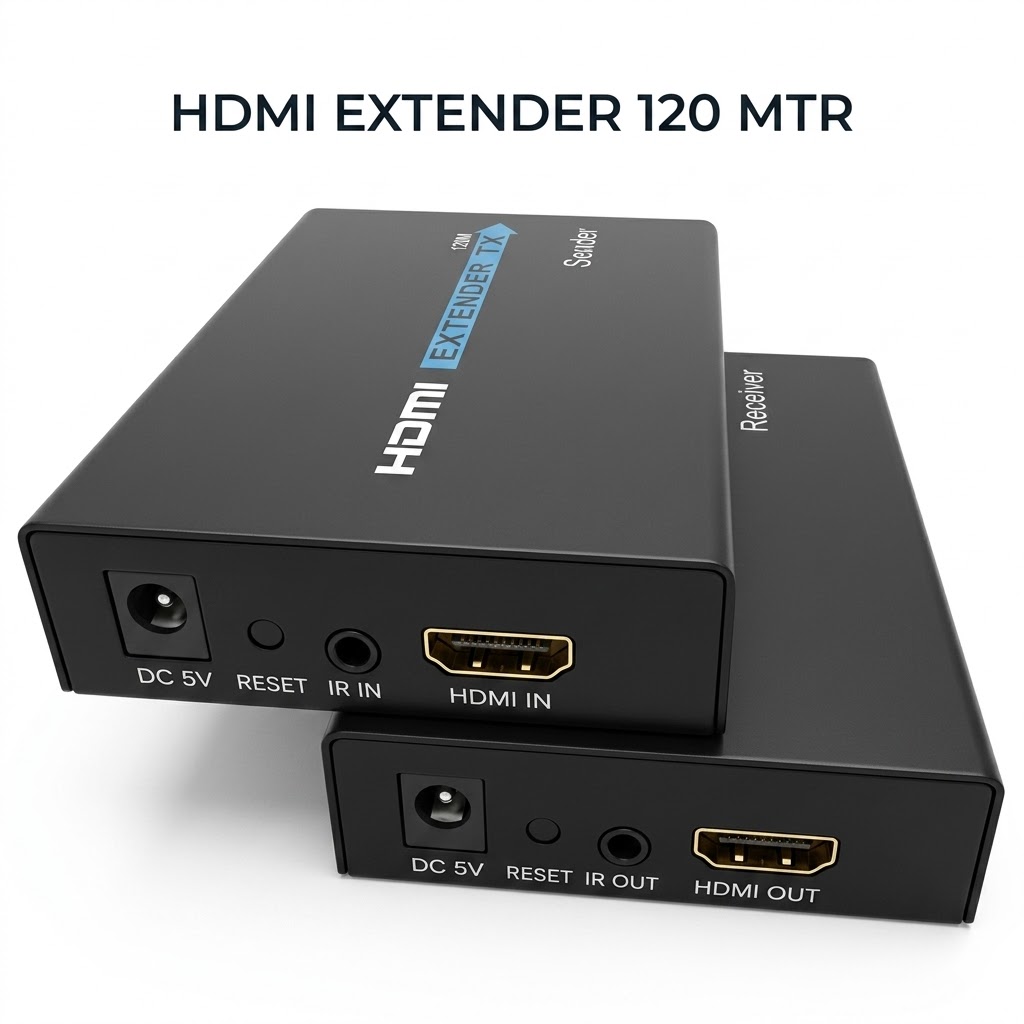

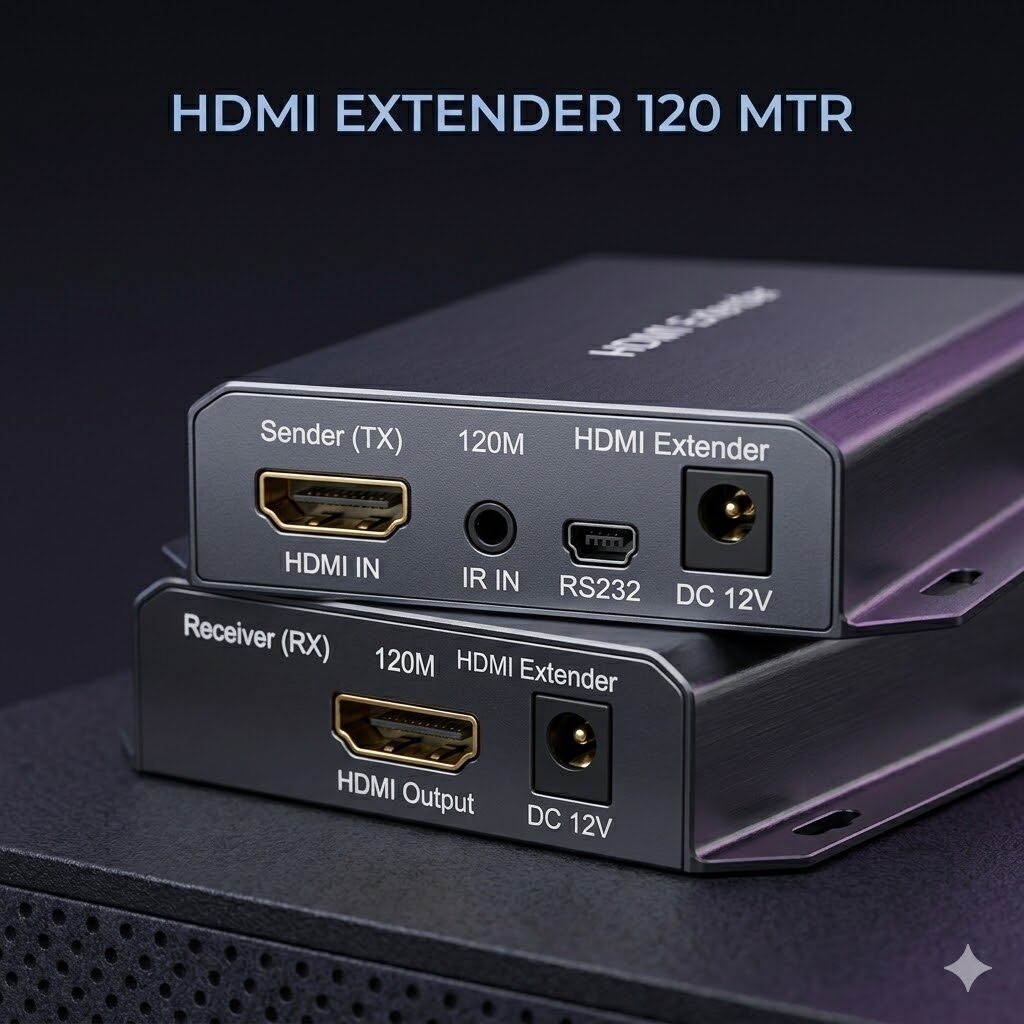

HDMI EXTENDER 120 mtr

HDMI Extender 120 Meters With IR HDMI Extender Over Cat5e/Cat6 1080P Adapter by LAN (1x Transmitter+1x Receiver) Fully tested in our LAB, Brand New 100% Compatible, 1 Month Warranty You can Extend your HD Video to multiple display by using an Ethernet Switch. Introduction HDMI Extender over cat5e/cat6 LKV373IR is designed to convert HDMI signal to standard TCP/IP and transimit by Lan Cable. With the advantage of TCP/IP standard,it can transmit HDMI signal source from HD STB,DVD,PS3,HDMI display card etc to HD projector, DLP,LCD,LED and other audio visual equipment. Click to view the next picture Specifications Following TCP/IP standard. Support HDMI1.3 protocol. HDCP1.1 / 1.2 protocol compliant Support point-to-point mode, one point-to-many mode and cascade connection mode. Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices. HDTV Resolutions 480p,576p,720p,1080p Audio Sample rate:32kHz, 44.1kHz and 48kHz IR remote control 38KHz; HDMI HDMI 1.3 HDCP HDMI 1.2 Power adapter Input: 100V – 240V (50 – 60Hz) Output: 5V/1A Power consumption HDMI Sender: 3W HDMI Receiver: 3W Size(L-W-H) 100×60×25mm Weight 70g Operating Temperature/Humidity 0 – 70 / 10% – 80%RH(no condensation) Storage Temperature/Humidity -10 – 80/ 5% -90% RH(no condensation) Panel Descriptions 5V/1A Supply power for the Sender RESET Hold down the key for 10 seconds, the model will Restore the default setting IR-OUT Connect IR transmitter to this Port. HDMI – IN Connect HDMI Source to this Port. STATUS When system start up, the Green LED will be on,When transmit video, the led will blink. Power Power on, The Red led is on Connection and operation 1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI IN of Sender. 2) Connect the IR sender to the Sender IR OUT Port, and Be Directed at HDMI video source’s IR receiver. 3) Connect the HDMI out of Receiver to HDTV display. 4) Connect the IR receiver to the Receiver IR IN Port. 5) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver. 6) Plug two pieces of 5V power supply into the Sender and Receiver. 7) Power on the HDTV display and HDMI source. Extend 120M longer by adding one more ethernet router PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: 1) Main unit No. 1 Sender , Main unit No. 2 Receiver 2) Two pieces of 5V DC Power Supply. 3) a pieces of IR transmitter and a pieces of IR receiver 4)
